1968-1970 Chevy Chevelle Sending Unit, 3/8" Line, 2 Lines, part number CC6853
CLASSIC PARTS GARAGE · SCHEMATIC
CC6853
CC6853Golden StarRear

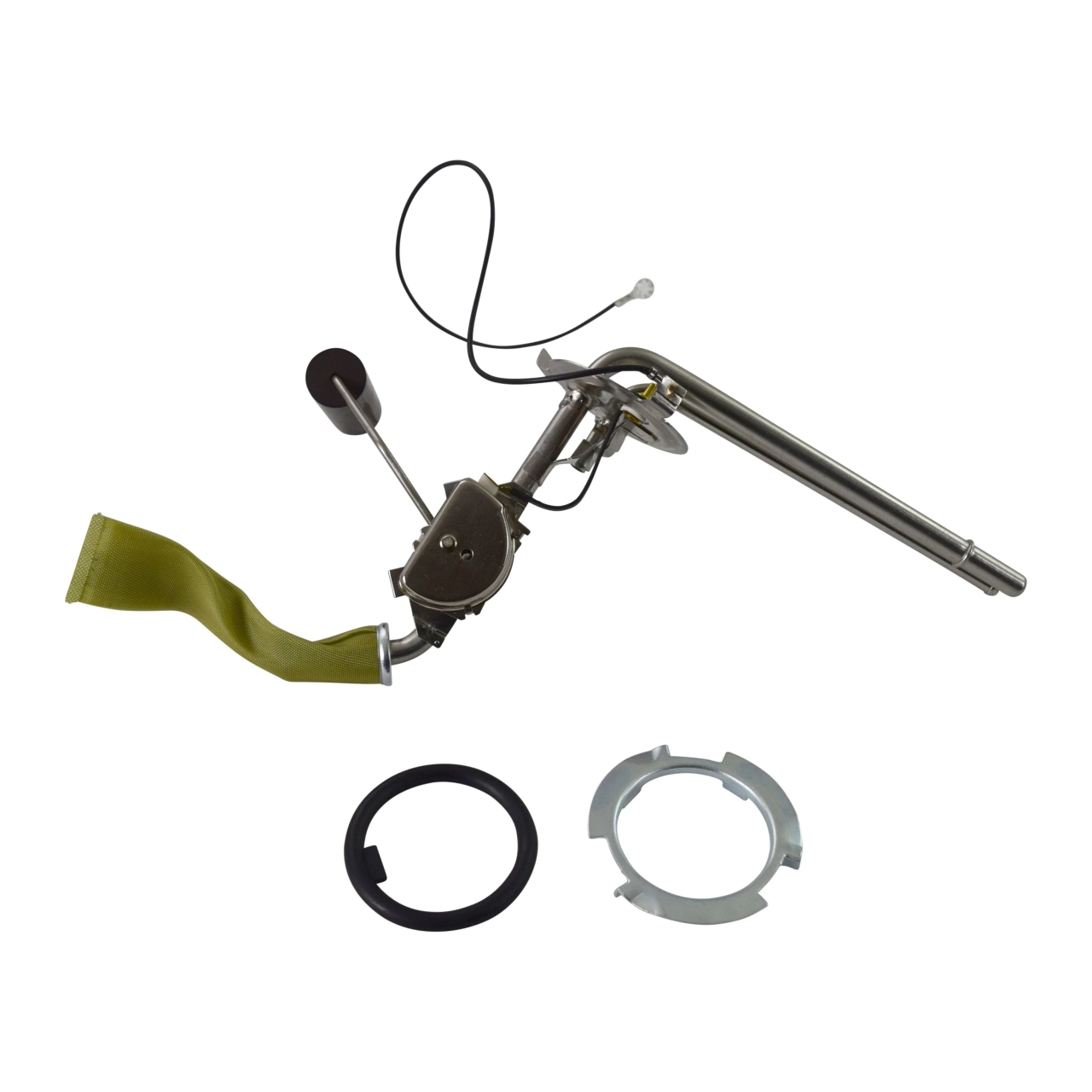

1968-1970 Chevy Chevelle Sending Unit, 3/8" Line, 2 Lines

Fuel sending unit for compatible 1968–1970 Chevrolet Chevelle applications with a 3/8-inch main fuel line and 2-line configuration. Designed to mount in the fuel tank and combine fuel pickup with fuel-level sensing., it helps restore proper fuel delivery and accurate gauge operation.

In stock12 Months

Not concours correct

This sending unit is correct for compatible 1968–1970 Chevelle applications because it combines the 3/8-inch primary fuel pickup line, second fuel-system line, and fuel-level sender in the configuration.

$55.00
1
003Specification

What it is

SHEET
003
SUBJECT
CC6853
SCALE
1:1
REV
A

1968–1970 Chevy Chevelle Sending Unit, 3/8" Line, 2 Lines Product Description Shop 1968–1970 Chevy Chevelle sending unit with 3/8-inch line and 2-line configuration for a clean fuel-system restoration. Replacing a used Chevelle fuel sending unit can help correct inaccurate fuel readings, corrosion, damaged pickup tubes, or fuel-delivery problems. Order Chevy Chevelle sending unit with dual-line design for compatible classic restoration and repair projects. This assembly mounts inside the fuel tank and combines the fuel-level sender with the pickup tube arrangement. The 3/8-inch main line supports the fuel supply side, while the second line is used according to the vehicle’s original fuel-system configuration. It is a practical replacement for worn or rusted original units and helps restore correct tank pickup and gauge operation when properly matched. Key Features Fits compatible 1968–1970 Chevrolet Chevelle applications 3/8-inch main fuel line 2-line configuration Integrated fuel-level sending function Factory-style tank mounting design Suitable for restoration and fuel-system repair Replaces corroded or damaged original sender assemblies Helps restore accurate fuel-gauge operation Supports proper fuel pickup from the tank Designed for use with compatible original-style fuel tanks Product Specifications Specification Details Product Type Fuel Sending Unit Vehicle Chevrolet Chevelle Model Years 1968–1970 Main Line Size 3/8 Inch Line Configuration 2 Lines Position Inside Fuel Tank Function Fuel Pickup / Fuel Level Sending Mounting Style Factory-Style Application Restoration / Replacement Fuel Tank Verify Compatibility Why Replace the Sending Unit? Age, corrosion, fuel contamination, and damaged electrical contacts can cause inaccurate gauge readings or poor fuel delivery. A replacement sending unit helps restore both fuel pickup and level-sensing functions in one assembly.

Features
  • Designed for compatible 1968–1970 Chevrolet Chevelle applications
  • 3/8-inch main fuel supply line
  • 2-line sender configuration
  • Integrated fuel pickup tube
  • Integrated fuel-level sending function
  • Factory-style tank mounting flange
  • Helps restore proper fuel-gauge operation
  • Replaces corroded, damaged, or worn original sending units
  • Suitable for restoration and fuel-system repair
  • Compatible with properly matched original-style fuel tanks
  • Durable metal tube construction
  • Includes float mechanism on applicable versions
  • Designed for use with matching fuel-line routing and sender resistance
In the box
  • 1 × Fuel sending unit assembly
  • Fuel pickup tube
  • Secondary line
  • Fuel-level sender mechanism
  • Float and float arm
  • Tank mounting flange
  • Filter sock / strainer where supplied
  • Lock ring and seal where included

Shipping weight 5.00 lb

004Application register

Everything this fits

1 application · 0 verified

SHEET
004
SUBJECT
FITMENT
SCALE
1:1
REV
A
Chevrolet1
  • 1968–1972Chevelle
    All engines

Intended for compatible 1968–1970 Chevrolet Chevelle applications. Confirm the vehicle requires a 3/8-inch main fuel line. Verify that the original system uses a 2-line configuration. The second line may serve a return or vent function depending on the exact application. Confirm fuel-tank design and sender mounting-flange pattern. Verify sender resistance range is compatible with the vehicle’s fuel gauge. Check pickup-tube depth against the fuel tank. Confirm float-arm travel and clearance inside the tank. Verify lock-ring and seal dimensions. Fuel tanks from different years or aftermarket manufacturers may use different sender openings. Modified fuel systems, electric pumps, EFI conversions, or custom return systems may require different line sizes or configurations. Do not assume lock ring, gasket, strainer, or wiring connector are included. Compare the original sender assembly before installation.

005Counter questions

Asked about this part

What is this product?
It is a fuel sending unit for compatible 1968–1970 Chevrolet Chevelle applications.
What does the sending unit do?
It combines fuel pickup and fuel-level sensing functions inside the fuel tank.
What model years does it fit?
It is intended for compatible 1968, 1969, and 1970 Chevy Chevelle models.
What size is the main fuel line?
The main fuel line is 3/8 inch.
How many lines does this sending unit have?
It has a 2-line configuration.
What is the second line used for?
Depending on the application, it may serve as a return or vent line.
Does it include the fuel-level sender?
Yes, the sender mechanism is integrated into the assembly.
Does it include the pickup tube?
Yes, the pickup tube is part of the sending unit assembly.
Does it include a float?
Most complete sender assemblies include a float and float arm.
Does it include a filter sock?
Some versions do, but exact package contents should be confirmed.
Does it include a lock ring?
Not always.
Does it include the tank seal or gasket?
It may, depending on the supplier.
Can this sender be used in a high-performance fuel system?
Only if the 3/8-inch pickup and 2-line arrangement meet the system requirements.
Is a 3/8-inch line suitable for many V8 applications?
It is commonly used, but exact fuel-demand requirements should still be confirmed.
What is the advantage of a 2-line sender?
It provides a second connection for systems that require a return or vent line.
Can the second line be capped if not used?
Only if the fuel-system design permits it.
Should the inside of the fuel tank be inspected?
Yes.
Can rust inside the tank damage the new sending unit?
Yes.
Should a badly rusted tank be replaced?
Usually yes.
Can debris in the tank clog the pickup?
Yes.
Is this suitable for restoration projects?
Yes
Is it suitable for daily drivers?
Yes, when properly matched and installed.
Is it suitable for restomods?
Yes, if the original-style 3/8-inch 2-line setup is retained.
Can this sender help restore factory gauge operation?
Yes, provided the gauge, wiring, ground, and sender resistance are all compatible.
Will a new sender fix every fuel-gauge problem?
No. Gauge, wiring, ground, and instrument-cluster faults can also cause incorrect readings.
Can a damaged gauge make a new sender appear faulty?
Yes.
Should the gauge system be diagnosed before replacement?
Yes, especially if the cause of the problem is uncertain.
What is the estimated product weight?
Approximately 2–4 lb depending on construction and included components.
What shipping weight should I use?
A practical estimated packaged weight is around 5 lb.
What should I verify before ordering?
Confirm the 1968–1970 Chevrolet Chevelle model year, 3/8-inch main fuel line, 2-line configuration, sender resistance range, tank opening, pickup depth, float-arm travel, electrical connection, second-line function, and included installation parts before purchase.
