2 inch Drop Spindle for 1964-1972 Chevy Chevelle, part number CC9996
CLASSIC PARTS GARAGE · SCHEMATIC
CC9996
CC9996LEED BrakesFront

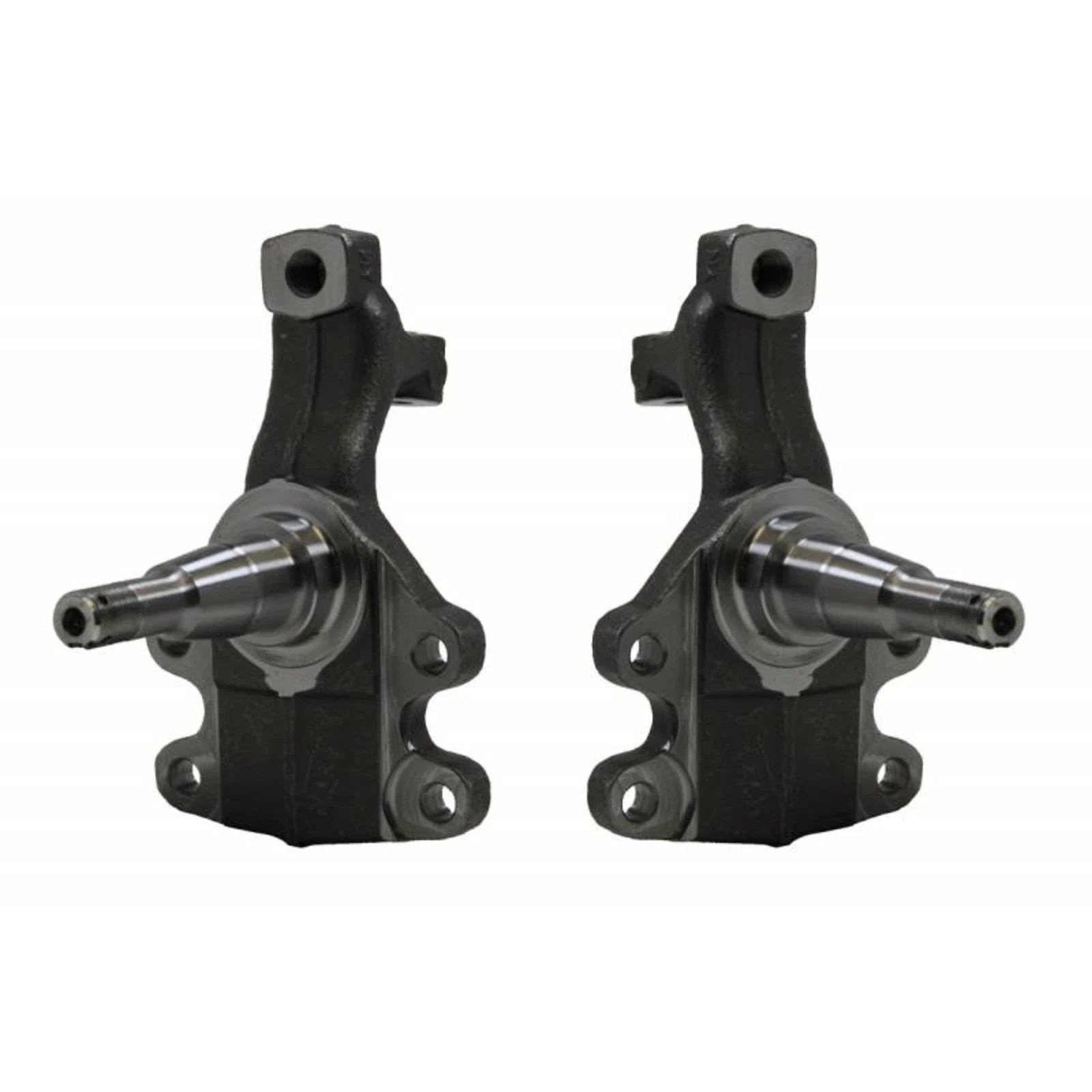

2 inch Drop Spindle for 1964-1972 Chevy Chevelle

2-inch drop spindle for compatible 1964–1972 Chevrolet Chevelle applications. Designed to lower the front ride height while maintaining a more usable suspension range than lowering with short springs alone, making it a strong choice for street, restomod, and pro-touring builds.

In stock12 Months

Not concours correct

These spindles are correct for compatible 1964–1972 Chevelle lowering projects because they are designed around the front suspension geometry, ball-joint mounting relationships, steering connection, and hub / brake location.

$270.00$309.99Save $39.99
1
003Specification

What it is

SHEET
003
SUBJECT
CC9996
SCALE
1:1
REV
A

2 Inch Drop Spindle for 1964–1972 Chevy Chevelle Product Description Shop 2 inch drop spindles for 1964–1972 Chevy Chevelle suspension upgrades and lowered street builds. Replacing a used Chevelle spindle that is worn, damaged, or no longer suited to your suspension setup can help restore proper front-end geometry. Order Chevy Chevelle 2 inch lowering spindles when you want a lower stance without relying only on shorter coil springs. Designed for compatible 1964–1972 Chevrolet Chevelle applications, these drop spindles relocate the wheel mounting position to lower the vehicle approximately 2 inches while helping preserve suspension travel. They are a popular choice for restoration, pro-touring, and restomod projects. Key Features Fits compatible 1964–1972 Chevrolet Chevelle applications Approximately 2-inch front drop Lowers ride height without depending solely on shorter springs Helps retain useful suspension travel Improves stance and wheel-to-fender appearance Suitable for street, restomod, and pro-touring builds Heavy-duty spindle construction Designed for front suspension installation Can work with compatible brake and hub components Useful for replacing damaged or worn original spindles Product Specifications Specification Details Product Type Front Drop Spindle Vehicle Chevrolet Chevelle Model Years 1964–1972 Drop Approximately 2 Inches Position Front Suspension Material Cast / Forged Steel, Verify Finish Black / Natural, Verify Brake Compatibility Verify Disc / Drum Application Side LH / RH or Pair, Verify Application Lowering / Restoration / Performance Why Choose Drop Spindles? A drop spindle lowers the vehicle by repositioning the spindle relative to the suspension rather than simply shortening the spring. This can help retain more normal suspension travel while producing the lower front stance many classic Chevelle owners want.

Features
  • Fits compatible 1964–1972 Chevrolet Chevelle applications
  • Approximately 2-inch front drop
  • Lowers vehicle through spindle geometry
  • Helps preserve suspension travel
  • Improves lowered stance
  • Suitable for street, restomod, and pro-touring applications
  • Heavy-duty metal construction
  • Designed for front suspension installation
  • Can replace worn or damaged original spindles
  • Compatible with selected brake and hub setups where specified
  • Helps maintain a cleaner suspension approach than excessive spring cutting
In the box
  • 1 × LH / driver-side drop spindle
  • 1 × RH / passenger-side drop spindle

Shipping weight 32.00 lb

004Application register

Everything this fits

2 applications · 0 verified

SHEET
004
SUBJECT
FITMENT
SCALE
1:1
REV
A
Chevrolet2
  • 1968–1972Chevelle
    All engines
  • 1964–1967Chevelle
    All engines

Intended for compatible 1964–1972 Chevrolet Chevelle applications. Confirm whether the listing includes one spindle or a matched pair. Verify front disc or drum brake compatibility. Check rotor, hub, bearing, and caliper-bracket requirements. Confirm steering-arm and tie-rod compatibility. Wheel backspacing and tire clearance should be checked carefully. Larger aftermarket brakes may affect wheel clearance. Lowered suspension can change alignment settings. Existing control arms, springs, shocks, and steering components should be inspected before installation. Do not assume all GM A-body brake configurations use the same spindle. Professional alignment is recommended after installation. Final ride height can vary depending on spring rate, tire diameter, engine weight, and existing suspension modifications.

005Counter questions

Asked about this part

What is this product?
It is a 2-inch drop spindle for compatible 1964–1972 Chevrolet Chevelle front suspension applications.
What does a drop spindle do?
It lowers the vehicle by repositioning the wheel hub or spindle location relative to the suspension.
How much does it lower the front of the car?
Approximately 2 inches.
Does it lower the rear of the car?
No. This product is for the front suspension.
What years does it fit?
It is intended for compatible 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, and 1972 Chevrolet Chevelle applications.
Is this specifically for Chevrolet Chevelle?
Yes, when sold for the 1964–1972 Chevelle application.
Is it installed on the driver side or passenger side?
Drop spindles are typically used as a left and right pair.
Does the listing include a pair?
Verify the exact package quantity before ordering.
Can one spindle be replaced by itself?
It may be possible, but suspension components of this type are commonly replaced in matched pairs.
Is a 2-inch drop noticeable?
Yes, it can significantly change the vehicle's front stance.
Is it suitable for a street car?
Yes, when properly installed with compatible suspension and brake components.
Can it be used on a restoration?
Yes, particularly on a modified or lowered restoration.
Is it factory original?
No. A 2-inch drop spindle is a suspension modification.
Does it preserve stock ride height?
No, it intentionally lowers the front ride height.
How is a drop spindle different from lowering springs?
A drop spindle lowers the wheel mounting point while allowing the spring to retain more of its normal operating range.
Does it reduce suspension travel as much as a short spring?
Usually less, depending on the overall suspension setup.
Can it be used with stock-height springs?
Often yes, if the spindle is designed for that suspension configuration.
Can it be combined with lowering springs?
Sometimes, but total ride height and clearance should be calculated carefully.
What should I verify before ordering?
Confirm the 1964–1972 Chevrolet Chevelle model year, whether the listing includes one spindle or a pair, brake configuration, rotor and hub requirements, wheel bearings, steering-arm fitment, tie-rod position, ball-joint compatibility, wheel backspacing, tire clearance, suspension travel, shock length, and overall lowering plan before purchase.
