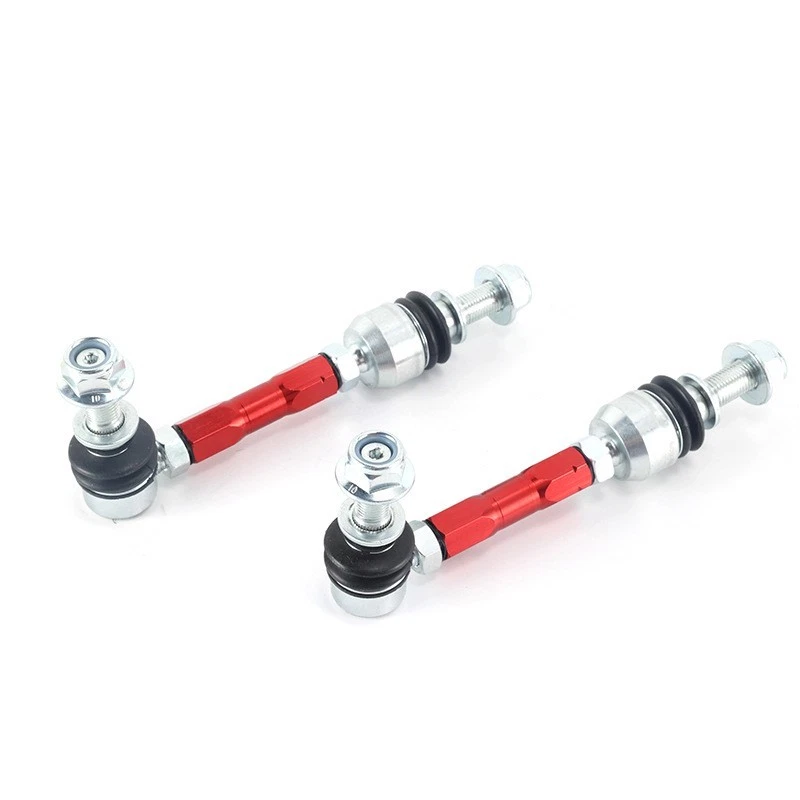

Adjustable Front Sway Bar End Links for Ford Bronco 2021-2026 2 4 Door LZC Pair, part number FB5432
CLASSIC PARTS GARAGE · SCHEMATIC
FB5432
FB5432VariousFront

Adjustable Front Sway Bar End Links for Ford Bronco 2021-2026 2 4 Door LZC Pair

Upgrade the front suspension on your modern Bronco with this pair of adjustable front sway bar end links for 2021–2026 Ford Bronco 2-door and 4-door models. Designed to help correct sway-bar geometry after suspension changes.

In stock12 Months

Not concours correct

This pair is correct for compatible modern Broncos because the adjustable-length design allows the front sway bar to be positioned more appropriately after suspension height changes.

$130.00$160.00Save $30.00
1
003Specification

What it is

SHEET
003
SUBJECT
FB5432
SCALE
1:1
REV
A

Adjustable Front Sway Bar End Links for Ford Bronco 2021–2026 2/4 Door LZC Pair Product Description Shop adjustable front sway bar end links for Ford Bronco 2021–2026 when you want better control over front sway-bar geometry. Replacing used Bronco sway bar links can help correct worn, fixed-length, or poorly matched suspension components. Order Ford Bronco adjustable front end links for lifted, leveled, off-road, or suspension-upgrade projects. Designed for compatible 2021–2026 Ford Bronco 2-door and 4-door models, this pair provides adjustable link length to help position the front sway bar more appropriately after suspension height changes. The adjustable design is especially useful on Broncos with lift kits, leveling systems, or modified front suspension geometry where factory-length links may no longer be ideal. Key Features Pair of adjustable front sway bar end links Fits compatible 2021–2026 Ford Bronco Suitable for 2-door and 4-door models Adjustable-length construction Helps correct sway-bar geometry after suspension changes Useful for lifted and leveled Broncos Supports more appropriate sway-bar positioning Suitable for street and off-road use Helps reduce unwanted preload or binding Front suspension application Product Specifications Specification Details Product Type Front Sway Bar End Link Pair Vehicle Make Ford Model Bronco Model Years 2021–2026 Body Styles 2-Door / 4-Door Position Front Configuration Adjustable Quantity Pair Application Suspension Upgrade / Replacement Use Street / Off-Road / Lifted Suspension Why Upgrade to Adjustable End Links? Factory-length links are designed around stock suspension geometry. Once ride height changes, the sway bar can sit at a less-than-ideal angle. Adjustable end links allow you to fine-tune link length and help keep the front sway bar working through a more appropriate range of motion. This makes them a useful upgrade for Broncos with suspension lifts, leveling kits, or other front-end modifications.

Features
  • Pair of adjustable front sway bar end links
  • Designed for compatible 2021–2026 Ford Bronco
  • Suitable for both 2-door and 4-door models
  • Adjustable-length design
  • Helps correct sway-bar geometry after suspension height changes
  • Useful for lifted or modified Broncos
  • Replaces fixed-length factory-style sway-bar links
  • Can help maintain proper sway-bar positioning
  • Suitable for street and off-road builds
  • Helps reduce unwanted binding caused by incorrect link length
  • Heavy-duty replacement-style construction
  • Designed for front suspension use
  • Useful for suspension refresh and performance upgrades
In the box
  • 2 × Adjustable front sway bar end links
  • Rod-end / joint hardware
  • Jam nuts
  • Mounting hardware, where supplied

Shipping weight 6.00 lb

004Application register

Everything this fits

1 application · 0 verified

SHEET
004
SUBJECT
FITMENT
SCALE
1:1
REV
A
Ford1
  • 2021–presentBronco Sport
    All engines

Intended for compatible 2021–2026 Ford Bronco applications. Designed for both 2-door and 4-door Bronco models. Verify whether your Bronco uses the standard sway bar or a factory electronic disconnect system. Some aftermarket sway-bar systems use different rod-end or mounting dimensions. Confirm the minimum and maximum adjustable length against your current suspension setup. Lift kits, leveling kits, aftermarket control arms, and long-travel suspension can change the required link length. Check upper and lower mounting bolt sizes before installation. Verify rod-end clearance at full steering lock and full suspension compression. Make sure the links do not contact the axle, control arms, shocks, brake hoses, or wheels. Suspension height should be settled before final adjustment. Both links should be adjusted to equal effective length unless the suspension manufacturer specifies otherwise. Final compatibility should be based on the actual LZC part dimensions and Bronco suspension configuration, not year range alone.

005Counter questions

Asked about this part

What is this product?
It is a pair of adjustable front sway bar end links for compatible 2021–2026 Ford Bronco 2-door and 4-door models.
What vehicles are these end links designed for?
They are intended for compatible 2021–2026 Ford Bronco applications.
Do they fit both 2-door and 4-door Broncos?
Yes, for compatible applications using the correct front sway-bar setup.
Are these for the front or rear suspension?
They are designed for the front sway bar.
How many end links are included?
The listing is for a pair, so two adjustable front end links are included.
Why are these sway bar end links adjustable?
The adjustable design allows the effective link length to be tuned to better match the truck’s suspension height and sway-bar geometry.
Are these useful on a lifted Bronco?
Yes. Adjustable links are especially useful when a suspension lift changes the factory sway-bar operating angle.
Can they be used on a stock-height Bronco?
Possibly, provided the adjustment range matches the required stock link length.
Will they work with a leveling kit?
They can be useful with compatible leveling setups because ride-height changes may alter sway-bar geometry.
Will these improve handling?
They can help maintain more appropriate sway-bar positioning, which may improve consistency and reduce unwanted preload when properly adjusted.
Do these increase suspension articulation?
They do not automatically increase articulation, but proper link length can help prevent the sway bar from operating at an incorrect angle.
Can they reduce sway-bar binding?
Yes. Properly adjusted links can help reduce binding caused by links that are too short or too long for the suspension setup.
Are they suitable for off-road use?
Yes, provided the links match the suspension configuration and have adequate clearance through the full range of travel.
Are they suitable for daily driving?
Yes. They can be used on street-driven Broncos when installed and adjusted correctly.
Do they replace the factory sway bar links?
Yes. They are intended as adjustable replacements for compatible factory-style front sway bar end links.
Will these fit Broncos with the factory electronic sway-bar disconnect?
Compatibility should be checked carefully. Bronco models with electronic sway-bar disconnect systems can use different hardware or mounting arrangements.
Will they fit Broncos without electronic sway-bar disconnect?
They may, provided the mounting dimensions and required link length match.
Do aftermarket sway bars affect compatibility?
Yes. Aftermarket bars can use different mounting points, bolt sizes, or link lengths.
Will long-travel suspension affect fitment?
Yes. Long-travel systems can require different link dimensions and greater articulation clearance.
Do lift height and suspension geometry matter?
Yes. The required link length depends heavily on suspension height, control-arm geometry, and sway-bar position.
How should both links be adjusted?
They should generally be adjusted to equal effective length unless the suspension manufacturer specifies otherwise.
Should the vehicle be sitting at normal ride height during adjustment?
Yes. Final adjustment is best made with the suspension settled at normal ride height on level ground.
Can incorrect adjustment cause problems?
Yes. Improper length can preload the sway bar, reduce travel, create binding, or cause contact with surrounding components.
What should I check for clearance?
Check the links against the control arms, shocks, brake hoses, wheels, tires, axle components, and sway-bar mounts.
Should I check clearance at full steering lock?
Yes. Turn the steering fully left and right and inspect for contact.
Should I check clearance through suspension travel?
Yes. Make sure the links remain clear during compression and droop.
What hardware is included?
The pair is expected to include the adjustable links and associated joint or mounting hardware, but exact bolts, spacers, washers, and bushings should be confirmed with the supplier.
Are jam nuts included?
They are commonly part of adjustable-link assemblies, but exact package contents should be verified for the LZC kit.
Are mounting brackets included?
Brackets should not be assumed unless specifically listed by the supplier.
Do I need special tools to install them?
Standard hand tools are typically sufficient, though a torque wrench is strongly recommended.
Should the mounting hardware be torqued to specification?
Yes. Use the vehicle or kit manufacturer’s recommended torque values.
Can loose jam nuts cause noise?
Yes. Loose adjustment hardware can create clunking, movement, or premature wear.
Should the links be rechecked after installation?
Yes. Reinspect the hardware and adjustment after the first drive and periodically thereafter.
Can worn sway bar bushings affect performance?
Yes. Worn frame bushings or sway-bar mounts can still cause noise and poor control even with new end links.
What should I verify before ordering?
Confirm the 2021–2026 Ford Bronco year, 2-door/4-door body style, front sway-bar type, electronic-disconnect status, lift height, required link length, bolt dimensions, and surrounding clearance.
What is the estimated shipping weight?
A practical packaged estimate is approximately 4–6 lb (1.8–2.7 kg) for the pair.
What shipping weight should I use for the listing?
6 lb (2.7 kg) is a safe listing weight unless the supplier provides an exact packaged weight.
Why choose adjustable end links instead of fixed-length replacements?
Adjustable links give you more control over sway-bar geometry, making them better suited to Broncos with altered ride height or modified suspension components.
